Optic Diameter
5.00 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Nil
Suggested A. Constant
118.4
Refractive Index
1.4915
Nominal
A
118.4
Haigis
a0
0.779
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
05.01
Holl.
1 Const sf
01.23
SRK/T
A
118.2
SRK II
A
118.4
Optic Diameter
5.25 mm
Overall Diameter
12.00 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Nil
Suggested A. Constant
118.4
Refractive Index
1.4915
Nominal
A
118.4
Haigis
a0
0.779
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
05.01
Holl.
1 Const sf
01.23
SRK/T
A
118.2
SRK II
A
118.4
Optic Diameter
5.50 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Nil
Suggested A. Constant
118.4
Refractive Index
1.4915
Nominal
A
118.4
Haigis
a0
0.779
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
05.01
Holl.
1 Const sf
01.23
SRK/T
A
118.2
SRK II
A
118.4

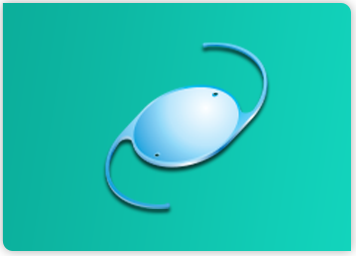

Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Two
Suggested A. Constant
118.2
Refractive Index
1.4915
Nominal
A
118.2
Haigis
a0
0.673
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
04.91
Holl.
1 Const sf
01.12
SRK/T
A
118.04
SRK II
A
118.2
Optic Diameter
6.50 mm
Overall Diameter
13.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Two
Suggested A. Constant
118.2
Refractive Index
1.4915
Nominal
A
118.2
Haigis
a0
0.673
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
04.91
Holl.
1 Const sf
01.12
SRK/T
A
118.04
SRK II
A
118.2
Optic Diameter
6.00 mm
Overall Diameter
13.00 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Two
Suggested A. Constant
118.2
Refractive Index
1.4915
Nominal
A
118.2
Haigis
a0
0.673
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
04.91
Holl.
1 Const sf
01.12
SRK/T
A
118.04
SRK II
A
118.2
Optic Diameter
6.00 mm
Overall Diameter
13.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" Design with step Vault
Dialing Holes
Nil
Suggested A. Constant
118.2
Refractive Index
1.4915
Nominal
A
118.2
Haigis
a0
0.673
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
04.91
Holl.
1 Const sf
01.12
SRK/T
A
118.04
SRK II
A
118.2
Optic Design
4.0mm X 8.0mm / 4.25mm X 7.25mm
Optic Size
Convex/Concave
Haptic Design
Spherical
A. Constant/AC Depth
117.2/2.95
Refractive Index
1.4915
Nominal
A
115.3
Haigis
a0
-0.862
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
03.42
Holl.
1 Const sf
-0.36
SRK/T
A
115.72
SRK II
A
115.30
Optic Design
5.50mm X 8.0mm / 5.50mm X 9.0mm
Optic Size
Convex/Concave
Haptic Design
Spherical
A. Constant/AC Depth
117.2/2.95
Refractive Index
1.4915
Nominal
A
115.3
Haigis
a0
-0.862
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
03.42
Holl.
1 Const sf
-0.36
SRK/T
A
115.72
SRK II
A
115.30
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"S" Design with step Vault
Dialing Holes
Nil
Suggested A. Constant
115.3
Refractive Index
1.4915
Nominal
A
115.3
Haigis
a0
-0.862
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
03.42
Holl.
1 Const sf
-0.36
SRK/T
A
115.72
SRK II
A
115.30
Optic Diameter
5.50 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
"C" Design with Step Vault
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
118.4
Refractive Index
1.4915
Nominal
A
118.4
Haigis
a0
0.779
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
5.01
Holl.
1 Const sf
1.23
SRK/T
A
118.2
SRK II
A
118.4
Optic Diameter
5.50 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
"C" Design with Step Vault
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
118.4
Refractive Index
1.4915
Nominal
A
118.4
Haigis
a0
0.779
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
5.01
Holl.
1 Const sf
1.23
SRK/T
A
118.2
SRK II
A
118.4

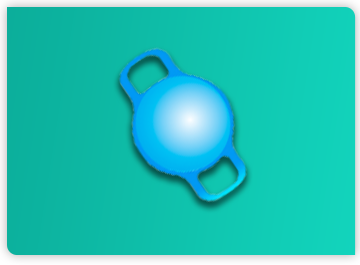

Optic Diameter
5.75 mm
Overall Diameter
12.00 mm
Optic Design
Spherical Biconvex
Haptic Design
Double Haptics , 5˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
Double Haptics , 5˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0

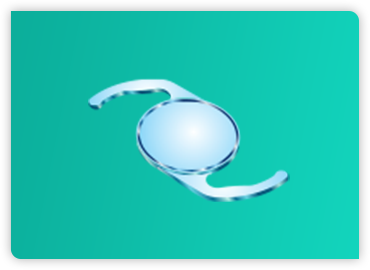

Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Spherical Biconvex
Haptic Design
"C" design , 5˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Refractive Index
1.4570

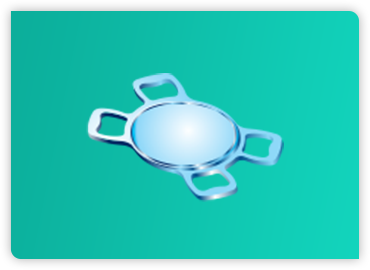

Optic Diameter
6.00 mm
Overall Diameter
11.00 mm
Optic Design
Spherical Biconvex
Haptic Design
4-Point Fixation, Plate Haptics, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0

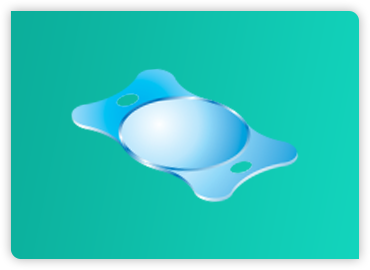

Optic Diameter
6.00 mm
Overall Diameter
10.50 mm
Optic Design
Spherical Biconvex
Haptic Design
4-Point Fixation, Plate Haptics, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
"C" design, 5° Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Refractive Index
1.4570
Optic Diameter
6.00 mm
Overall Diameter
11.00 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
4-Point Fixation, Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Optic Diameter
6.00 mm
Overall Diameter
10.60 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
Plate Haptics, Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570

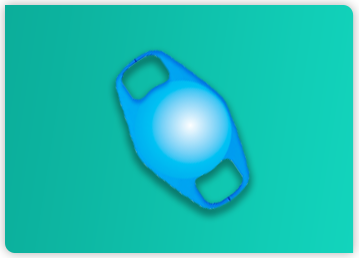

Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
Double Haptics , 5˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm

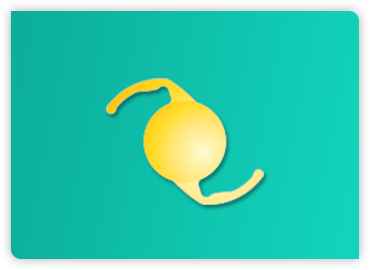

Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
"C" design, 5° Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Refractive Index
1.4570
Optic Diameter
6.00 mm
Overall Diameter
11.00 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
4-Point Fixations, Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0

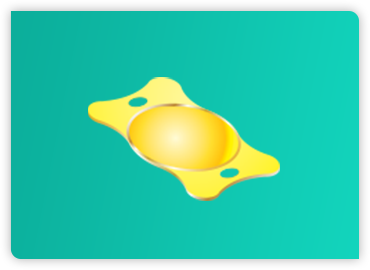

Optic Diameter
6.00 mm
Overall Diameter
10.60 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
Plate Haptics, Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
+ve power Range: 118
Suggested A. Constant
-ve power Range: 117.4
Refractive Index
1.4570
Nominal
A
118.0
Haigis
a0
0.568
Haigis
a1
0.400
Haigis
a2
0.100
HofferQ
pACD
4.80
Holl.
1 Const sf
1.02
SRK/T
A
117.88
SRK II
A
118.0
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
“C” Design, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
A. Constant SRK/T
117.8 / 118.8
A. Constant SRK II
118.1 / 119.1
Refractive Index @ 25˚C
1.4933
Lens Material
Hydrophobic Acrylic
Delivery System
Disposable Injector cartridge 2.20 mm to 2.60 mm Incission
A Constant
UltraSound
Optical Biometry
Nominal
A
118.1
119.1
Haigis
a0
1.34
1.96
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.02
5.61
Holl.
1 Const sf
1.28
1.85
SRK/T
A
117.8
118.8
SRK II
A
118.1
119.1
Available Diopters
-5.0 D to + 35.0 D ( +10.0D to + 30.0 D in 0.5 D steps,
-5.0 D to + 9.0 D & + 31.0 to + 35.0 D in 1.0 D Steps)
Optic Diameter
6.00 mm
Overall Diameter
13.00 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
“C” Design, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
A. Constant SRK/T
117.8 / 118.8
A. Constant SRK II
118.1 / 119.1
Refractive Index @ 25˚C
1.4933
Lens Material
Hydrophobic Acrylic
Delivery System
Disposable Injector cartridge 2.20 mm to 2.60 mm Incission
A Constant
UltraSound
Optical Biometry
Nominal
A
118.1
119.1
Haigis
a0
1.34
1.96
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.02
5.61
Holl.
1 Const sf
1.28
1.85
SRK/T
A
117.8
118.8
SRK II
A
118.1
119.1
Available Diopters
-5.0 D to + 35.0 D ( +10.0D to + 30.0 D in 0.5 D steps,
-5.0 D to + 9.0 D & + 31.0 to + 35.0 D in 1.0 D Steps)
Optic Diameter
6.00 mm
Overall Diameter
12.50 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
“C” Design, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
118.6 / 118.8
Refractive Index @ 25˚C
1.555
Lens Material
Hydrophobic Acrylic
Delivery System
Disposable Injector cartridge 2.20 mm to 2.60 mm Incission
A Constant
UltraSound
Optical Biometry
Nominal
A
118.6
118.8
Haigis
a0
1.65
1.78
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.32
5.43
Holl.
1 Const sf
1.57
1.67
SRK/T
A
118.3
118.5
SRK II
A
118.6
118.8
Available Diopters
-5.0 D to + 35.0 D ( +10.0D to + 30.0 D in 0.5 D steps,
-5.0 D to + 9.0 D & + 31.0 to + 35.0 D in 1.0 D Steps)
Optic Diameter
6.00 mm
Overall Diameter
13.00 mm
Optic Design
Aberration Neutral, Negative Aspheric Biconvex
Haptic Design
“C” Design, 0˚ Angulation
PCO Protection
360˚ perfect Square edge around the optic edge
Suggested A. Constant
118.6 / 118.8
Refractive Index @ 25˚C
1.555
Lens Material
Hydrophobic Acrylic
Delivery System
Disposable Injector cartridge 2.20 mm to 2.60 mm Incission
A Constant
UltraSound
Optical Biometry
Nominal
A
118.6
118.8
Haigis
a0
1.65
1.78
Haigis
a1
0.400
0.400
Haigis
a2
0.100
0.100
HofferQ
pACD
5.32
5.43
Holl.
1 Const sf
1.57
1.67
SRK/T
A
118.3
118.5
SRK II
A
118.6
118.8
Available Diopters
-5.0 D to + 35.0 D ( +10.0D to + 30.0 D in 0.5 D steps,
-5.0 D to + 9.0 D & + 31.0 to + 35.0 D in 1.0 D Steps)
| Model | Overall Diameter | Insertion Diameter | Fixation Hook | Material | Enquiry |
|---|---|---|---|---|---|
| ZCR 1109 | 11.0 mm | 09.0 mm | nil | CQ-PMMA Clear / Blue | |
| ZCR 1210 | 12.0 mm | 10.0 mm | nil | CQ-PMMA Clear / Blue | |
| ZCR 1311 | 13.0 mm | 11.0 mm | nil | CQ-PMMA Clear / Blue | |
| ZCR 1412 | 14.0 mm | 12.0 mm | nil | CQ-PMMA Clear / Blue | |
| ZCR 1210L | 12.0 mm | 10.0 mm | Left side with step Vault | CQ-PMMA Clear / Blue | |
| ZCR 1311L | 13.0 mm | 11.0 mm | Left side with step Vault | CQ-PMMA Clear / Blue |
| Model | Overall Diameter | Insertion Diameter | Fixation Hook | Material | Enquiry |
|---|---|---|---|---|---|
| ZCR 1210R | 12.0 mm | 10.0 mm | Right Side with Step Vault | CQ-PMMA Clear / Blue | |
| ZCR 1311R | 13.0 mm | 11.0 mm | Right Side with Step Vault | CQ-PMMA Clear / Blue | |
| ZCR 1210LR | 12.0 mm | 10.0 mm | Both Side with Step Vault | CQ-PMMA Clear / Blue | |
| ZCR 1311LR | 13.0 mm | 11.0 mm | Both Side with Step Vault | CQ-PMMA Clear / Blue |
Newlineinfo Corp
